Historic Significance

Architectural description:

This is a 1 ½ - story three-aisle nine-bent tobacco shed with its south eave-side facing Windsorville Road. The ridge line of the shed runs east-west parallel to the road. The main façade of the shed is its west gable-façade with the main entrance at the center through a pair of hinged wagon doors with blacksmith hardware.  The gable attic above is separated from the rest of the façade by a distinct girt siding divide line. The tobacco shed is ventilated through the vertical siding on the eave-sides in which every second board is hinged at the top and tilted out at the bottom by means of a horizontal cleat, that lifts several boards at once, and metal prop hooks to hold the boards in place.
The wooden frame of the shed is supported on concrete footings and has asphalt shingle roofing.

Historical significance:

The tobacco barn, or shed as it is called in the Connecticut River Valley, is one of the most distinctive of the single-crop barns. They tend to be long, low windowless buildings with pitched roofs. They are characterized by vented sides to regulate air flow and allow harvested tobacco to cure at the appropriate rate.  Derived initially from the design of the English barn, the shed is composed of a fixed skeleton consisting of two- or three-aisle bents repeated at intervals of 15 feet to the desired length. The wood-framed bents sit on piers of stone or concrete and the bents are connected by girts and diagonal braces. Typically there are two doors at each end, making the shed a “drive-through,” although some sheds are accessed through doors on the sides. The interior structural framework serves a second purpose in addition to supporting the walls and roof of the building; it provides a framework for the rails used to hang the tobacco as it cures.

This is accomplished with one of four different systems (more than one method may be utilized in a single shed):

a) Vertical slats - siding in which every second board is hinged at the top and tilted out at the bottom by means of a horizontal cleat, that lifts several boards at once, and metal prop hooks to hold the boards in place;

b) Side slats - Vertical siding in which alternate boards are hinged along the sides to open like tall narrow doors, each held in place by its own hook;

c) Less commonly, horizontal siding in which alternate boards are hinged along the top edge and open like long narrow awnings; this system may be employed along the lower edge of the wall in conjunction with vertical or side slats;

d) A series of large doors along one of the long sides of the building with the other sides of the building vented by one or more of the other methods.

e) The tobacco sheds can have additional ventilation through side-pivot awning vents on the gable-ends, which co-exist with one or more of the above four systems of ventilation.

Field Notes

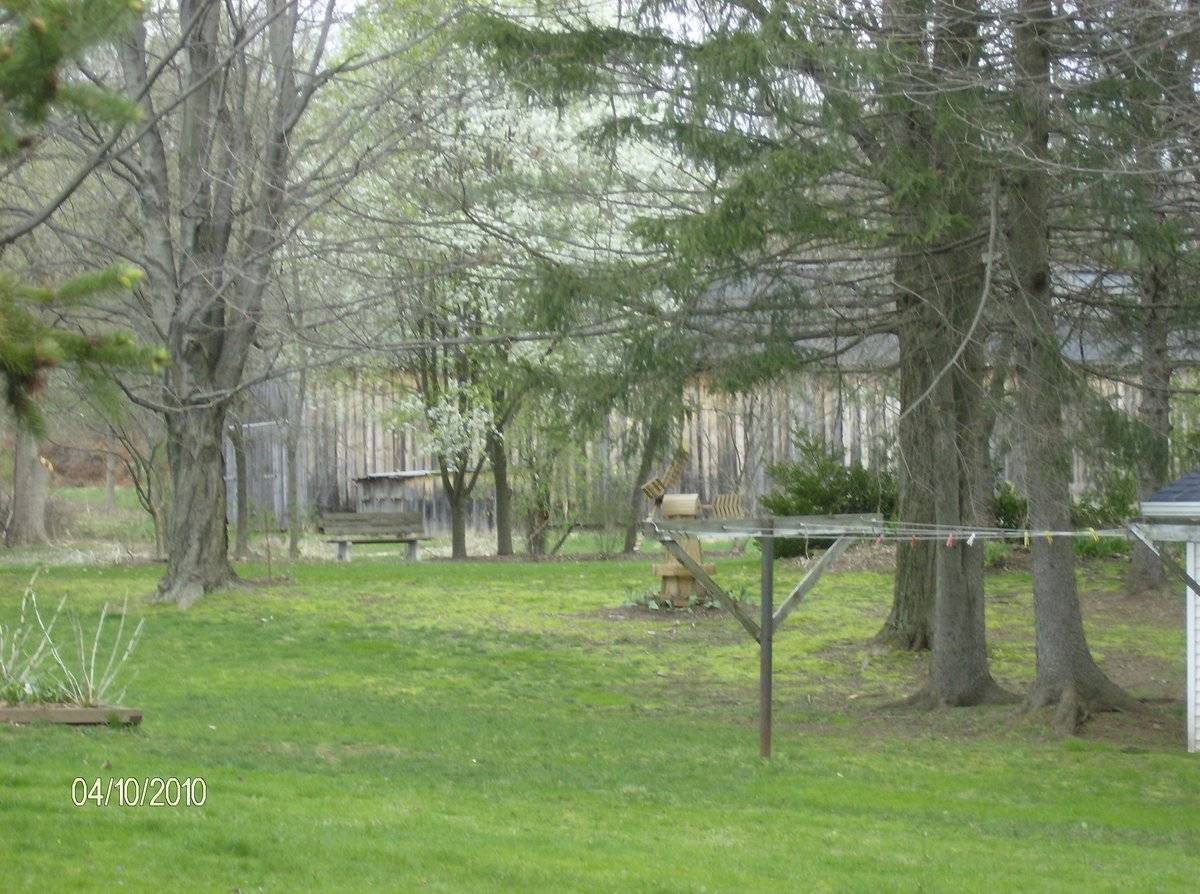

Tobacco shed in Windsorville which is difficult to be seen from the road.

Use (Historic)

• tobacco

Use (Present)

• unknown

---

Exterior Visible from Public Road?

Yes

Demolished

n/a

Location Integrity

Unknown

Related features

• Other

Environment features

• Open Land
• Residential
• Rural
• Woodland

Relationship to surroundings

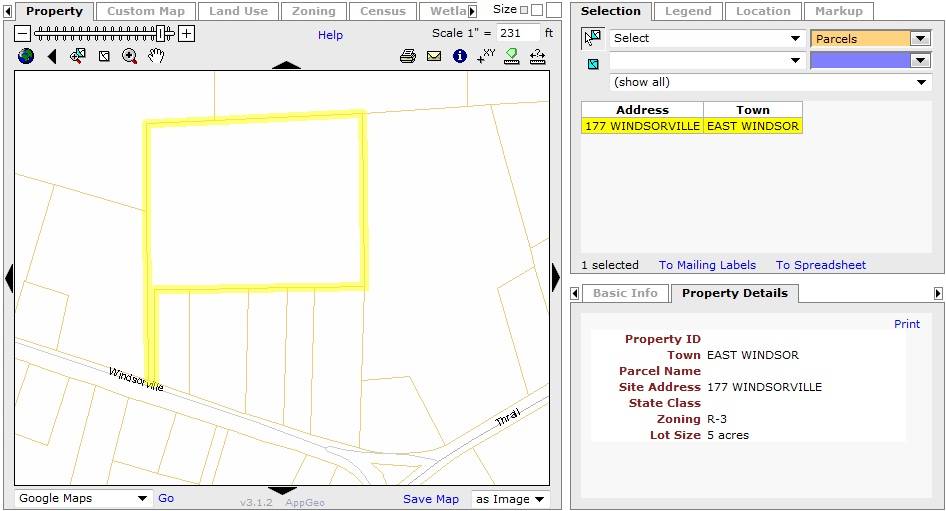

The 5 acres property, Map Number - 36 60 019A, is towards the north of Windsorville Road, offset from the road with a very narrow frontage. The land with outbuildings is located in a pre-dominantly residential area separated by dense woodland. Pierce Memorial Park and Windsorville Cemetery can be seen towards the west of the property while few residential plots can be seen towards the south, along Windsorville Road. The eastern, northern and the western edges of the property is defined by dense woodland.

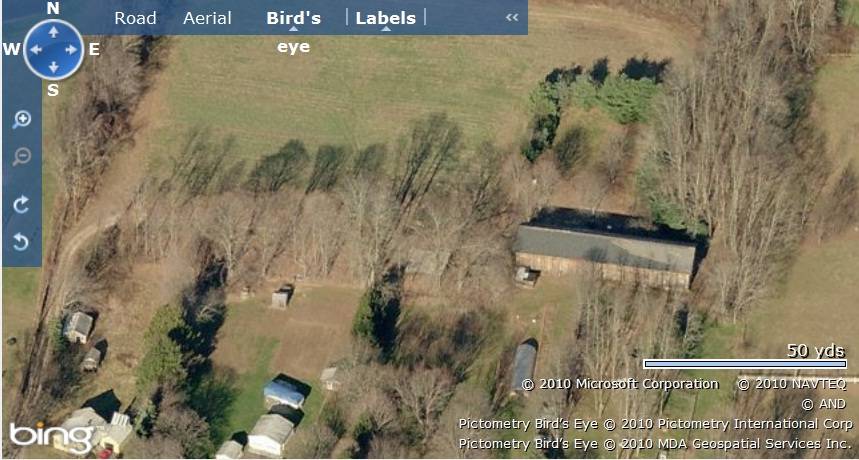

The tobacco shed is located in the south-eastern corner of the property with parcels of open land towards its west and the north. The ridge line of the shed runs east-west parallel to the road. The property is accessed by a narrow tract towards its south-west corner which connects to Windsorville Road.

Building Typology

• Tobacco Shed

Materials

• Concrete
• Vertical Siding

---

Structural System

• Load-bearing Masonry
• Wood Frame

Roof materials

• Asphalt Shingle

---

Roof type

• Gable

---

Approximate Dimensions

Shed: 4096 SqFt, Circa 2003 Shed: 144 SqFt, Circa 1930 Porch: 840 SqFt, Circa 1985

Date Compiled

12/07/2010

Compiled By

T. Levine and M. Patnaik, reviewed by CT Trust

Sources

Photographs and field-notes provided by – John E. Harmon

Assessors’ records retrieved on December 7th, 2010 from website http://www.equalitycama.com/

GIS information retrieved on December 7th, 2010 from website http://www.crcog.org/gissearch/

Photograph/Information retrieved on December 7th, 2010 from website http://www.google.com

Information retrieved on December 7th, 2010 from website http://www.zillow.com

O’Gorman, James F., Connecticut Valley Vernacular: the Vanishing Landscape and Architecture of the New England Tobacco Fields, University of Pennsylvania Press, 2002, 144 pages.

Sexton, James, PhD; Survey Narrative of the Connecticut Barn, Connecticut Trust for Historic Preservation, Hamden, CT, 2005, http://www.connecticutbarns.org/history

Visser, Thomas D.,Field Guide to New England Barns and Farm Buildings, University Press of New England, 1997.
