Historic Barns of Connecticut

Designations

n/a

Historic Significance

Architectural description:

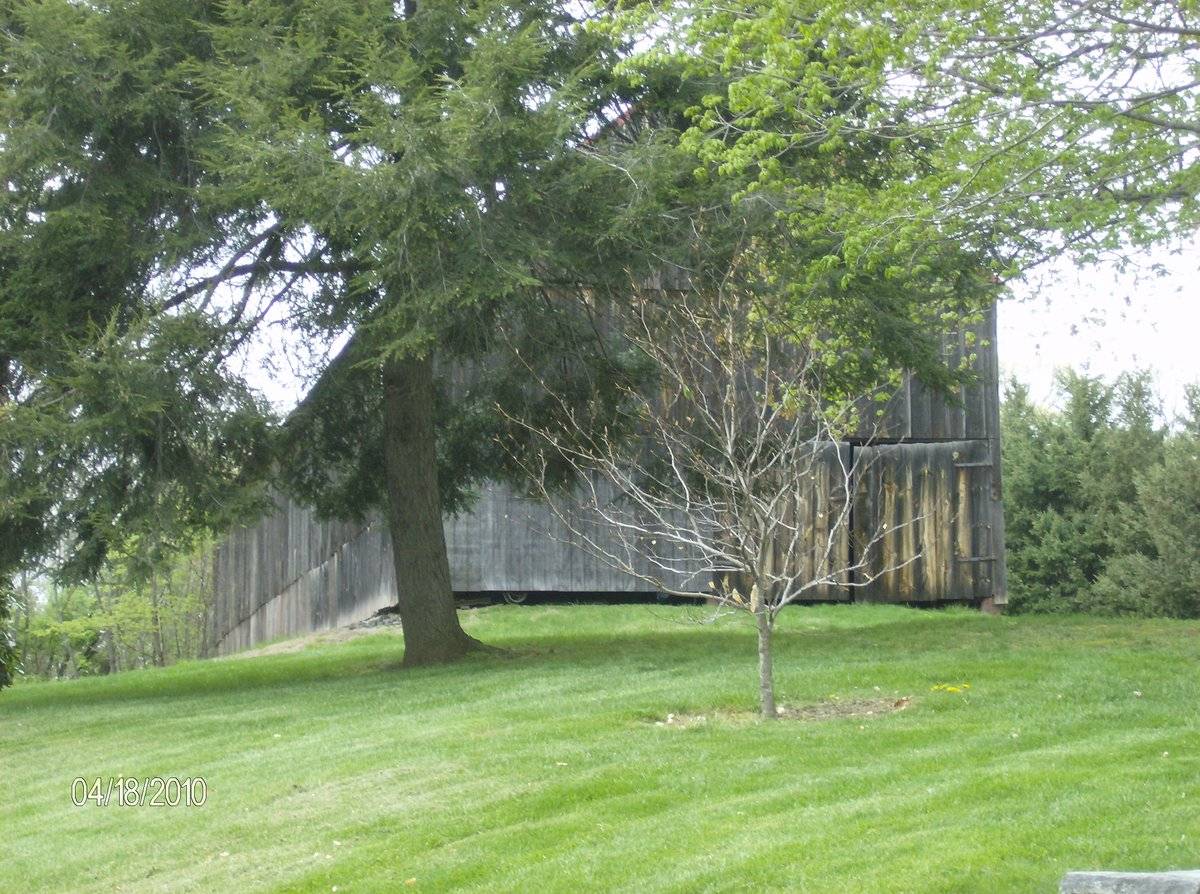

This is a 1 ½-story gable-entry three-aisle tobacco shed which appears to be nine-bent. The east gable-side of the shed faces Rye Street while the ridge line runs east-west, almost parallel to the road. The main façade of the shed is its east gable-façade with the main entrance towards the northern edge through a pair of hinged wagon doors with blacksmith hardware. The gable attic above is separated from the rest of the main façade by a distinct girt siding divide line. The north eave-side of the shed has a wagon door entrance between the fourth-bent and the fifth-bent that appears to be a later addition. The shed is ventilated through the side slats on the vertical siding of the north eave-side in which alternate boards are hinged along the sides to open like tall narrow doors, each held in place by its own hook. The shed appears to have additional ventilation through the vertical siding on the south eave-side where every second board is hinged at the top and tilted out at the bottom by means of a horizontal cleat, that lifts many boards at once, and metal prop hooks to hold the boards in place.
The wooden frame of the tobacco shed is supported on concrete footings and has relatively new red painted metal roofing.

Historical significance:

The tobacco barn, or shed as it is called in the Connecticut River Valley, is one of the most distinctive of the single-crop barns. They tend to be long, low windowless buildings with pitched roofs. They are characterized by vented sides to regulate air flow and allow harvested tobacco to cure at the appropriate rate.  Derived initially from the design of the English barn, the shed is composed of a fixed skeleton consisting of two- or three-aisle bents repeated at intervals of 15 feet to the desired length. The wood-framed bents sit on piers of stone or concrete and the bents are connected by girts and diagonal braces. Typically there are two doors at each end, making the shed a “drive-through,” although some sheds are accessed through doors on the sides. The interior structural framework serves a second purpose in addition to supporting the walls and roof of the building; it provides a framework for the rails used to hang the tobacco as it cures.

This is accomplished with one of four different systems (more than one method may be utilized in a single shed):

a) Vertical slats - siding in which every second board is hinged at the top and tilted out at the bottom by means of a horizontal cleat, that lifts several boards at once, and metal prop hooks to hold the boards in place;

b) Side slats - Vertical siding in which alternate boards are hinged along the sides to open like tall narrow doors, each held in place by its own hook;

c) Less commonly, horizontal siding in which alternate boards are hinged along the top edge and open like long narrow awnings; this system may be employed along the lower edge of the wall in conjunction with vertical or side slats;

d) A series of large doors along one of the long sides of the building with the other sides of the building vented by one or more of the other methods.

e) The tobacco sheds can have additional ventilation through side-pivot awning vents on the gable-ends, which co-exist with one or more of the above four systems of ventilation.

Field Notes

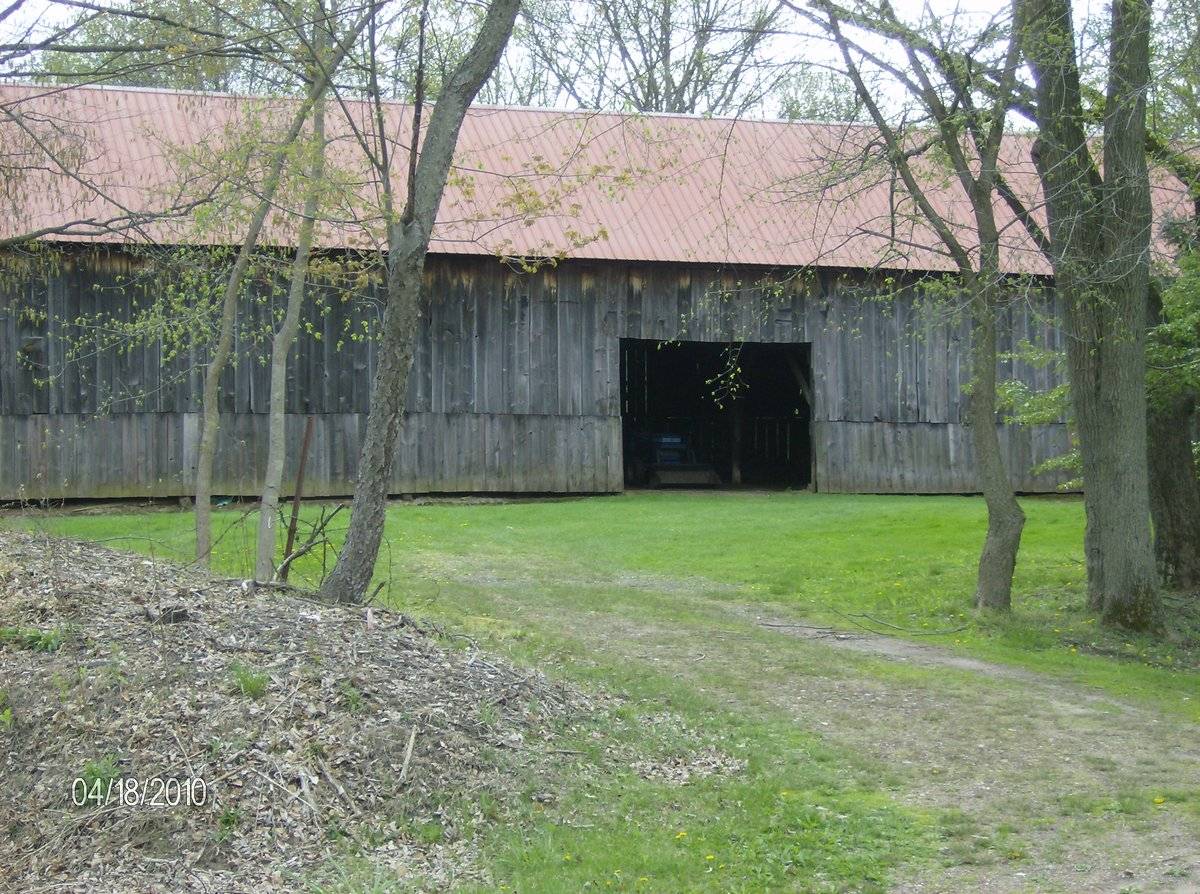

Tobacco shed converted to some other use. Red metal roof and large entry cut into north side.

Use (Historic)

• tobacco

Use (Present)

• storage

---

Exterior Visible from Public Road?

Yes

Demolished

n/a

Location Integrity

Unknown

Related features

n/a

Environment features

• Residential
• Woodland

Relationship to surroundings

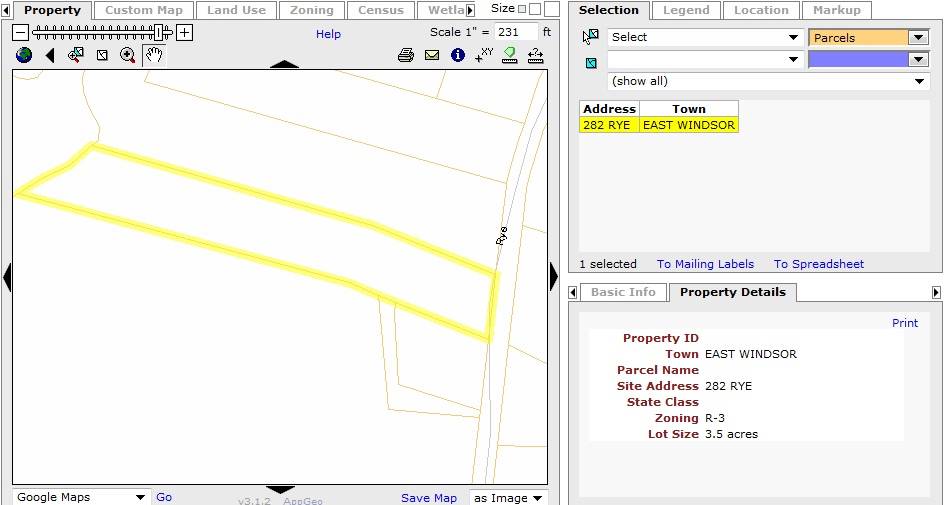

The 3.5 acres property, Map Number - 40 42 023, is a land with outbuildings located towards the west of Rye Street in a pre-dominantly residential area. The property is flanked by other residential plots towards the north, south and the west, across Rye Street. Dense woodland surrounds the property on its west and south-west.

The shed is located towards the eastern edge of the property abutting to Rye Street. The ridge line of the barn runs east-west, almost perpendicular to the road. Open land can be seen towards the north and the west of the tobacco shed while dense woodland can be seen towards the south.

Building Typology

• Tobacco Shed

Materials

• Concrete
• Vertical Siding

---

Structural System

• Load-bearing Masonry
• Wood Frame

Roof materials

• Metal

---

Roof type

• Gable

---

Approximate Dimensions

Barn: 3720 SqFt, Circa 1900

Date Compiled

11/23/2010

Compiled By

T. Levine and M. Patnaik, reviewed by CT Trust

Sources

Photographs and field-notes provided by –
John Harmon

Assessors’ records retrieved on November 23rd, 2010 from website http://www.equalitycama.com/

GIS information retrieved on November 23rd, 2010 from website http://www.crcog.org/gissearch/

Photograph/Information retrieved on November 23rd, 2010 from website http://www.google.com

Information retrieved on November 23rd, 2010 from website http://www.zillow.com

O’Gorman, James F., Connecticut Valley Vernacular: the Vanishing Landscape and Architecture of the New England Tobacco Fields, University of Pennsylvania Press, 2002, 144 pages.

Sexton, James, PhD; Survey Narrative of the Connecticut Barn, Connecticut Trust for Historic Preservation, Hamden, CT, 2005, http://www.connecticutbarns.org/history

Visser, Thomas D.,Field Guide to New England Barns and Farm Buildings, University Press of New England, 1997.
